HTML/XTML and Critical rendering path

Created by Maksym Kolisnyk

EPAM

Agenda

  1. Intro in HTML/XHTML
  2. Constructing the Object Model
  3. Render-Tree Construction Layout and Paint
  4. Render-Blocking CSS
  5. Adding Interactivity with JavaScript

Intro in HTML/XHTML

Developed in 1986—1991 by Tim Berners-Lee

Timeline

24.11.1995

HTML 2.0 was published as IETF RFC 1866

14.01.1997

HTML 3.2 was published as a W3C Recom.

18.12.1997

HTML 4.0 was published as a W3C Recom.

24.12.1999

HTML 4.01 was published as a W3C Recom.

15.05.2000

ISO HTML, based on HTML 4.01 Strict was published as an ISO/IEC international standard

28.10.2014

HTML5 was published as a W3C Recom.

03.10.2017

HTML5.1 was published as a W3C Recom.

XHTML1

XHTML1
extensible hypertext markup language

In 1998, World Wide Web Consortium began work on the new markup language based on HTML 4 but corresponding syntax XML. Subsequently, a new language called XHTML. The first version of XHTML 1.0 as a Recommendation approved by W3C in January 26, 2000.

SGML 1960

HTML
1990

XML
1996

XHTML
2000

Differences between XHTML and HTML

The main difference with HTML and XHTML is processing the document. XHTML documents are processed by its module (parser) similar documents XML.
During this processing, the mistakes made by developers, not corrected. As a W3C Recommendation browsers encountering an error in XHTML, you must report it and not to process document. For HTML browsers had to try to understand what the author meant;

Browser selects the parser to process the document based on the header content-type, obtained from the server:
HTML — text/html
XHTML — application/xhtml+xml

The default encoding is UTF-8 (as opposed to HTML, which is the default encoding ISO 8859-1).

Rules of XHTML

  • All elements must be closed. Tags that don't have a closing tag (e.g. <img> or <br>), must have at the end / (e.g. <br />)
  • Logical attributes are written in expanded form. For example, you should write <option selected="selected"> or <td nowrap="nowrap"> instead <option selected> or <td nowrap>
  • Tag names and attributes must be written in lowercase letters (e.g. <img alt="" /> instead <IMG ALT="" />)
  • XHTML is much stricter refers to errors in the code < and & everywhere, even in the URL, must be replaced by &lt; and &amp; respectively.

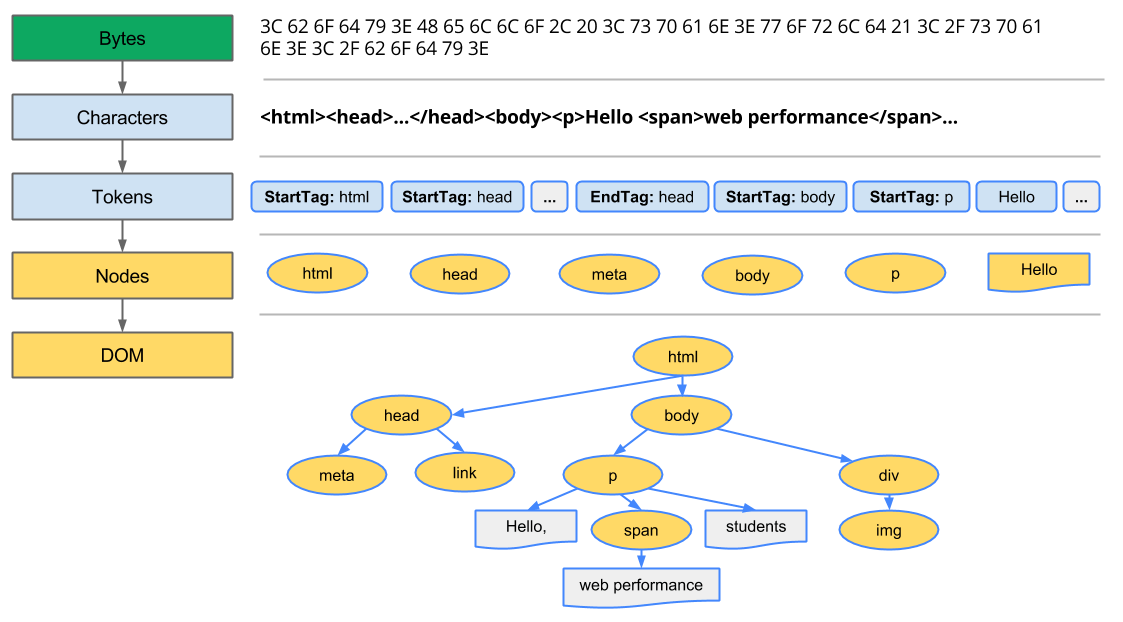

Constructing the Object Model

CSSOM Model


body { font-size: 16px }
p { font-weight: bold }
span { color: red }
p span { display: none }
img { float: right }

CSSOM TREE

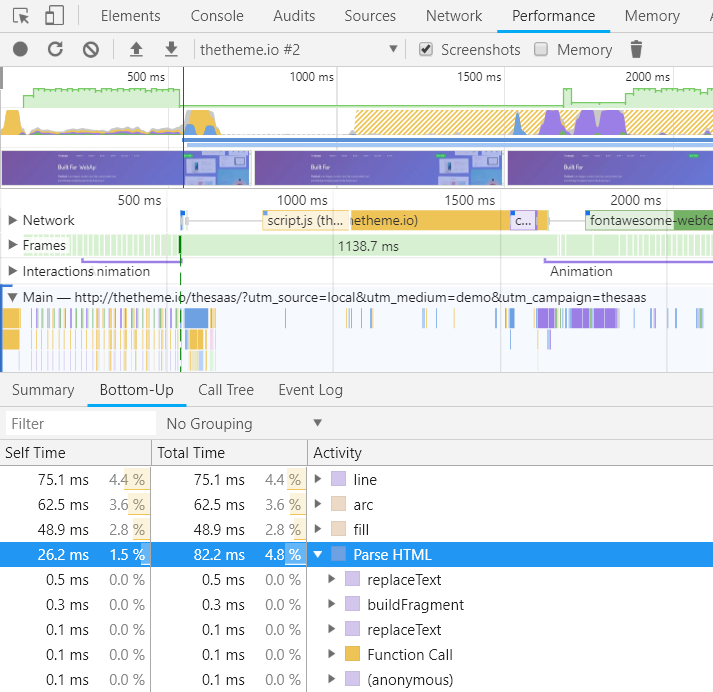

Recalculate style

Render-Tree Construction Layout and Paint

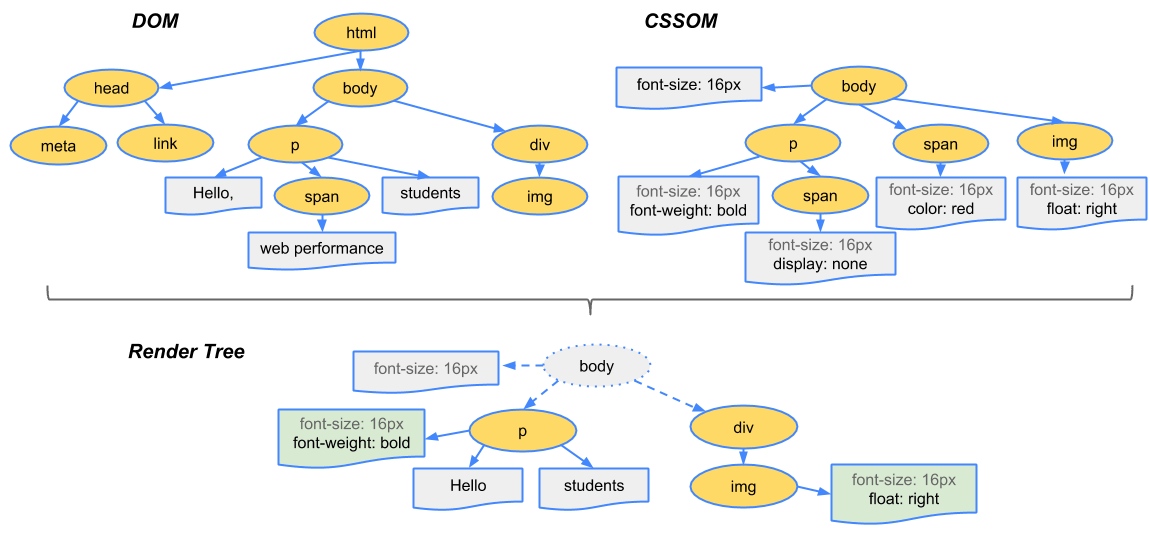

Render-Tree Construction

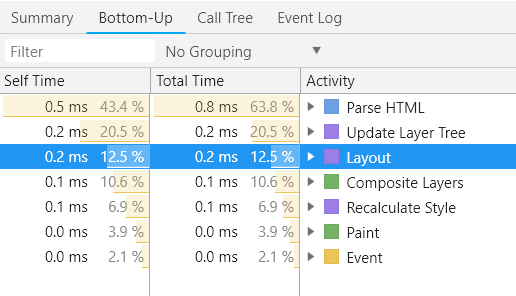

Layout perfomance

Render-Blocking CSS

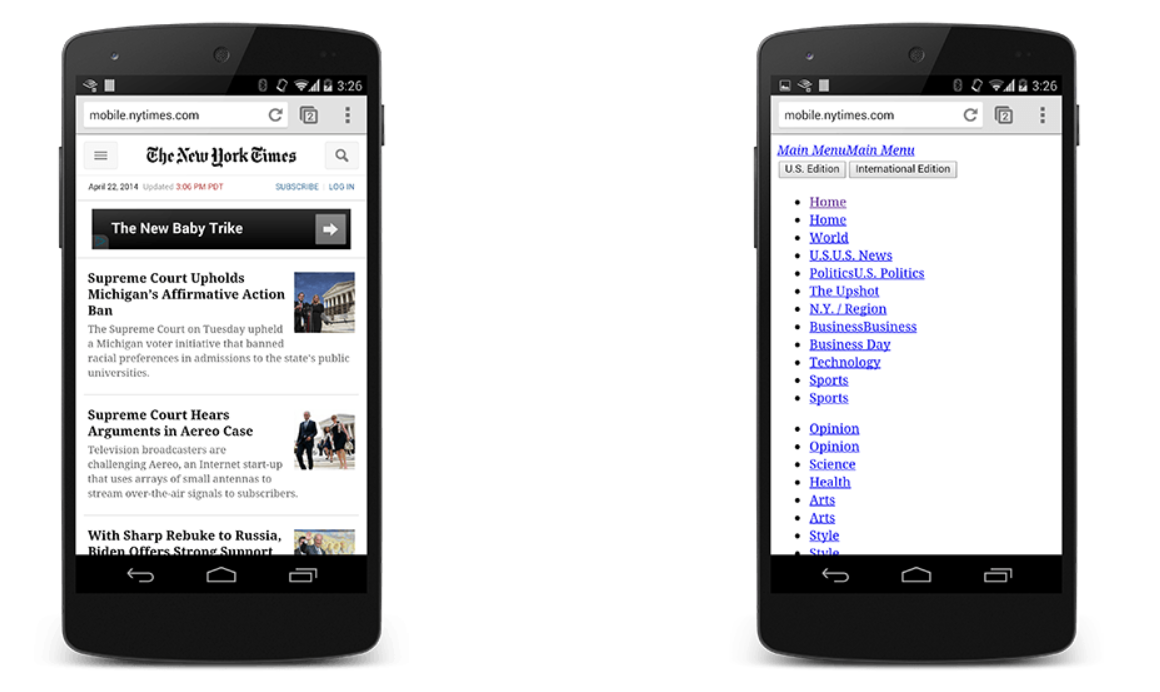

The new york times with/without css

Useful examples

Constructing the Object Model

JS and DOM



Hello web performance students!







Hello web performance students!







Hello web performance students!

THE END

any questions?
